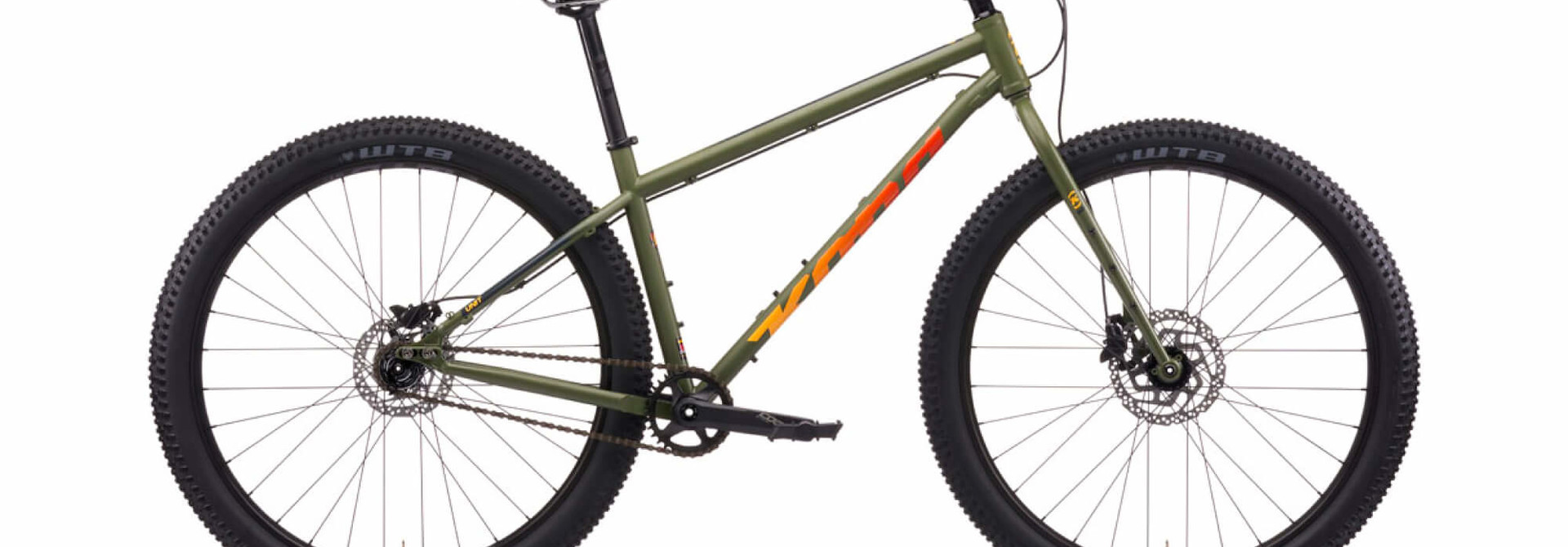

If Leonard Smalls were to trade out his beefed-up Honda VT500 and pedal his way across the Arizona desert, we have no doubt it’d be aboard the Unit. Burly. Steel. Hardcore. Mean. Mean? Sure. The Unit does not mess around. Its single-speed design and Cromo...
- SKU: K21/UNIT LG
If Leonard Smalls were to trade out his beefed-up Honda VT500 and pedal his way across the Arizona desert, we have no doubt it’d be aboard the Unit. Burly. Steel. Hardcore. Mean. Mean? Sure. The Unit does not mess around. Its single-speed design and Cromoly frame make its simplicity shine and keep the moving parts long-lasting for those big excursions. Gear mounts on the fork legs and several options for mounting water bottles mean you won’t go without any of the necessary gear no matter where you’re traveling.
- Frame Material: Reynolds 520 Butted Cromoly
- Fork: Kona Plus Fork
- Wheels: WTB ST i30 TCS 29”
- Crankset: FSA Comet Modular
- Drivetrain: Single Speed
- Brakes: Shimano MT201 Hydraulic with 180mm front/160mm rear rotor
- Seat Post: Kona Thumb w/Offset 31.6mm
- Cockpit: Kona XC/BC Riser Bar/Kona XC/BC Stem with Kona Lock-on Key Grip
- Front Tire: WTB Ranger TCS 29x2.6”
- Rear tire: WTB Ranger TCS 29x2.6”
- Saddle: WTB Volt
REYNOLDS 520 CROMOLY
Reynolds 520 tubes are mandrel-butted for accurate profiles and available in a wide range of shapes. Weight savings from butting provides competitively priced, light framesets that are noticeably compliant on the road or the trail, and are guaranteed to last a lifetime.
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
44mm HEAD TUBE
44mm oversized heatubes allow us to run tapered steerer forks by using a large external lower cup headset bearing. The larger diameter steerer tube adds considerable stiffness and will increase responsiveness to the front end, improving all-around performance.
TUBELESS COMPATIBLE RIMS
Tubeless rims allow for tires with more puncture resistance; the ability to run lower tire pressure, which provides better tire grip on the trail; lower rolling resistance; and weight savings over traditional tube and tire systems.
12x142mm, 12x148 and 12x157 rear axle standards provide two major advantages to the Kona rider: the 12mm diameter of the rear axle provides the rear hub and frame with a stiff interface, while the 142/148/157mm outer diameter of the hub allows the wheel to be quickly and properly positioned in the frame before the rear axle is inserted. For 2017, you’ll see the 12x148 Boost standard in the mix. Boost spacing provides more tire clearance at the chainstay yoke, while the rear wheel is stiffer and more durable relative to a 12x142 thru-axle.
Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.
ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.
LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.
Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
