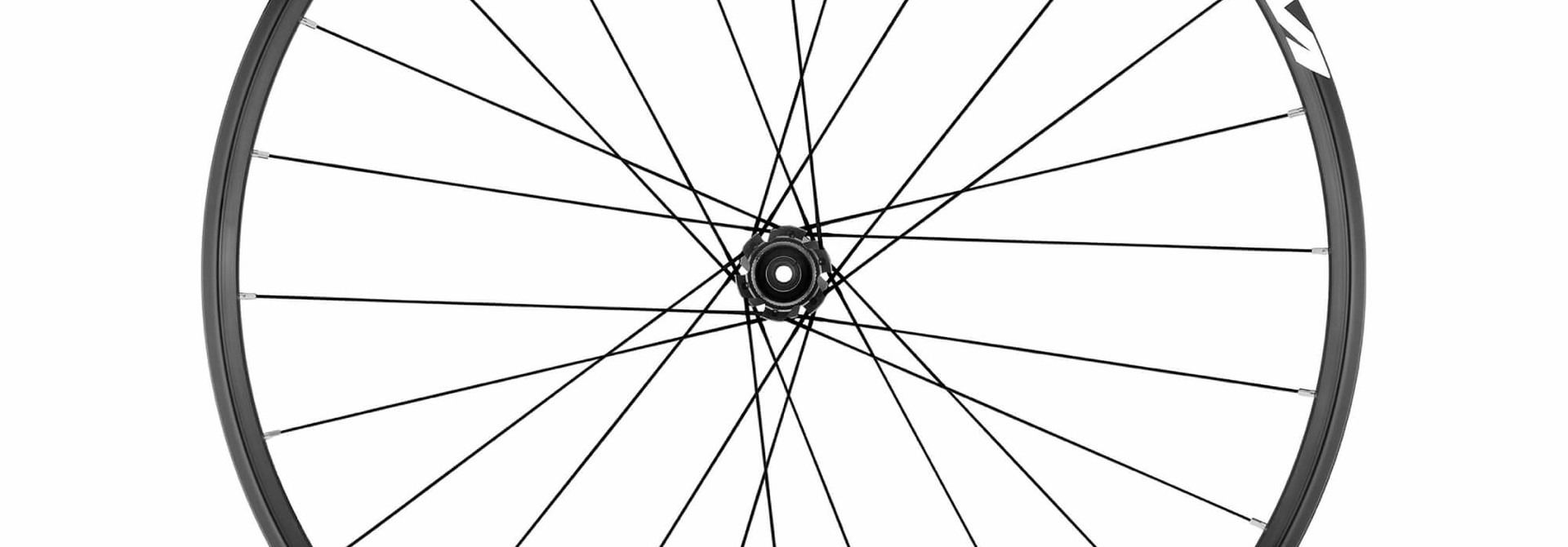

Mavic Aksium Disc D6 2019 (No Tyre)

This Aksium Disc model includes special features aimed at the unique demands of disc brake road bikes. It uses straight-pull spokes for added stiffness and strength, and we also increased the spoke count to 24 on both front and rear wheels.

With a 17mm internal width, these rims are compatible with tires up to 32mm, making them versatile, comfortable and ideal for challenging road conditions. The disc-specific hubs feature super strong QRM bearings that provide low friction and long-term durability.

The Aksium Disc is made for standard quick release and is compatible Center Lock brake rotors.

KEY FEATURES

• Powerful, reliable disc brakes for added confidence and control.
  24 spokes front and rear for optimized brake torque distribution.
  Disc-brake optimized rim profile.
  Disc-friendly spoke geometry and lacing pattern.
• Smooth, efficient ride quality.
  Wider 17mm (inner width) rims allow tires up to 32mm.
  High quality QRM cartridge bearings.
  Straight pull round spokes are stronger than J-bend options.

SPECS
Compatibility

• Front axle: 12x100 thru axle, easily convertible to quick release with included adapters. Not compatible with 15mm through axles.
• Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
• Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies

Compatible Adapters and freewheel bodies

• ID360 Shimano / Sram freewheel body (LV3430100 - Delivered on the wheel)
• ID360 XD-R freewheel body (LV2580100)
• ID360 Campagnolo freewheel body (LV3440100)
• ID360 Shimano / Sram Light freewheel body (LV3850100)
• 12x135 rear axle adapters (LV2510900)
• 12 to 9mm rear adapter for quick release (LV2510800 - Delivered with the wheel)
• 12x142 rear axle adapters (LV2510700 - Delivered with the wheel)
• 12mm front hub cap (LV2680500 - Delivered with the wheel)
• 12 to 9mm front adapter for quick release (LV2680300 - Delivered with the wheel)

Weight

• Pair without tyre: 1905 grams
• Front without tyre: 870 grams
• Rear without tyre: 1035 grams

Hubs

• Front: Quick release and 12x100 through axle compatible
• Auto adjust sealed cartridge bearings (QRM Auto), front and rear
• Rear: Quick Release, 12x142 and 12x135 compatible
• Freewheel: Instant Drive 360
• Front and rear bodies: aluminum
• Axle material: aluminum

Intended Use

• Max. Pressure: see indication on wheel and tyre. If they differ, use the lowest of the 2
• For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
• ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
• Recommended tyre sizes: 25 to 32 mm

Rims

• ETRTO size: 622x17C
• Drilling: traditional
• Height: 21 mm
• Internal width: 17 mm
• Disc brake specific profile
• Valve hole diameter: 6.5 mm
• Joint: pinned
• Material: S6000 Aluminum
• Tyre: clincher

Spokes

• Nipples: steel, ABS
• Material: steel
• Lacing: front and rear crossed 2
• Count: 24 front and rear
• Shape: straight pull, round

Versions

• Disc standard : 6 Bolts or Center Lock(R)
• Color: Black only

DELIVERED WITH

• Rear QR adapters for Instant Drive 360
• Front QR adapters
• Rim tape
• User guide

KEY TECHNOLOGIES

Instant Drive 360: The new Instant Drive 360 freewheel system is super light and fast to engage with only 9°. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
